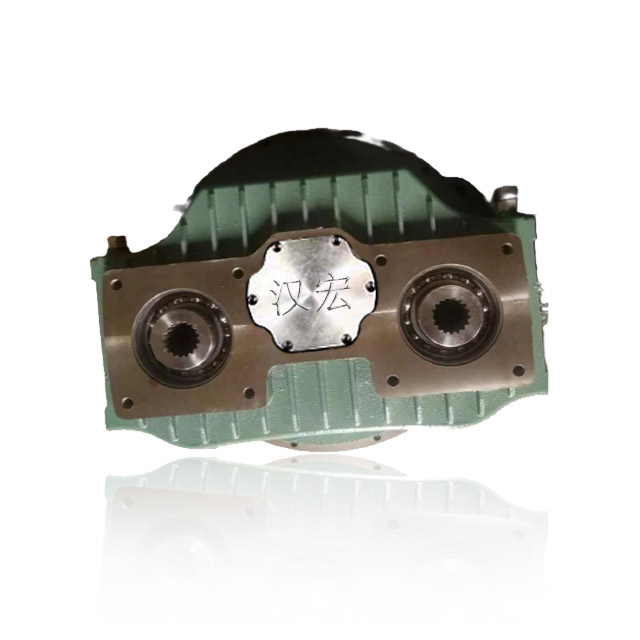

The 190 kW Two Outputs Transfer Case is a versatile hydraulic power unit designed for optimal performance in various industrial applications. This transfer case efficiently distributes power to multiple hydraulic pumps, compressors, or generators, making it an essential component for heavy-duty machinery.
| Transfer case parameter table | |
| Input power P | 190KW |
| Single pump power | 110KW |
| Single pump maximum torque T | 450Nm |
| Maximum input speed n | 3800min |
| Speed ratio | 0.7-1.4 |
| Approximate weight | 78kg |
| Connection type | |
| Input connection optional | Diesel engine/motor/hydraulic motor, etc |
| Connection type is optional | Elastic coupling/clutch/cardan shaft/direct connection, etc |
| Output connection optional | Hydraulic pump/air compressor/generator, etc |
Power Capacity: Provides a dependable output of 190 kW, suitable for demanding operational requirements.
Input Connection Options: Flexible input connections are available, including diesel engines, electric motors, and hydraulic motors, allowing for customization based on your specific needs.
Output Connection Options: Features dual output ports that can be connected to hydraulic pumps, air compressors, or generators, enhancing the versatility of your hydraulic system.
Durability: Built from high-quality materials to ensure long-lasting performance and reliability even in challenging environments.
Wide Applications: Suitable for various industries, including agricultural machinery, construction machinery, petroleum machinery, coal mining machinery, and military equipment, where efficient hydraulic power distribution is crucial.
