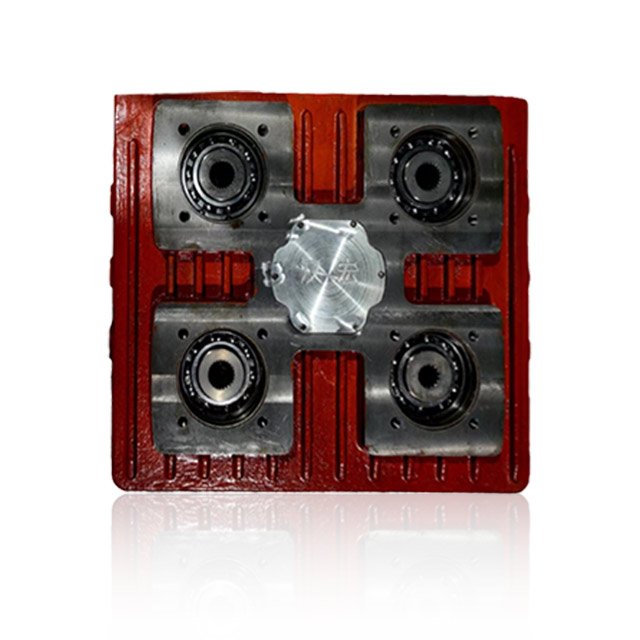

The 530 kW One Input Four Outputs Transfer Case is a powerful hydraulic solution designed to meet the high demands of various industrial applications. This transfer case efficiently distributes power to multiple hydraulic systems, significantly enhancing productivity and versatility in operations.
| Transfer case parameter table | |
| Input power P | 530KW |
| Single pump power | 280KW |
| Single pump maximum torque T | 1500Nm |
| Maximum input speed n | 30000min |
| Speed ratio | 0.7-1.4 |
| Approximate weight | 203kg |
| Connection type | |
| Input connection optional | Diesel engine/motor/hydraulic motor, etc |
| Connection type is optional | Elastic coupling/clutch/cardan shaft/direct connection, etc |
| Output connection optional | Hydraulic pump/air compressor/generator, etc |
Input Power: Capable of handling an impressive input power of 530 kW, making it suitable for intensive hydraulic tasks.
Four Output Ports: Designed with four output connections, allowing for the simultaneous operation of multiple hydraulic pumps or systems, which maximizes operational efficiency.
Durable Construction: Built with high-strength materials, this transfer case is engineered to withstand challenging environments, ensuring long-lasting reliability and performance.
Versatile Applications: Suitable for various industries, including agricultural machinery, construction machinery, petroleum machinery, coal mining machinery, and military equipment, where efficient hydraulic power distribution is crucial.
Optimized Performance: Designed for stable and consistent power delivery, this transfer case is a crucial component for hydraulic systems requiring high efficiency and dependability.
