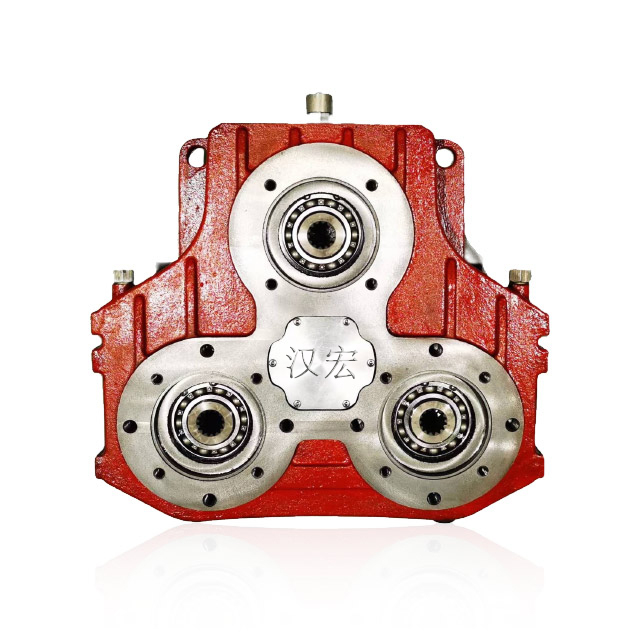

The 290 kW One Input Three Outputs Transfer Case is a high-performance hydraulic solution designed for robust applications in various industries. Engineered with an overall casting structure, this transfer case ensures superior strength and durability, making it ideal for demanding operational environments.
| Transfer case parameter table | |
| Input power P | 280KW |
| Single pump power | 110KW |
| Single pump maximum torque T | 500Nm |
| Maximum input speed n | 2800min |
| Speed ratio | 0.7-1.4 |
| Approximate weight | 103kg |
| Connection type | |
| Input connection optional | Diesel engine/motor/hydraulic motor, etc |
| Connection type is optional | Elastic coupling/clutch/cardan shaft/direct connection, etc |
| Output connection optional | Hydraulic pump/air compressor/generator, etc |
Input Power: Designed to handle an input power of 290 kW, providing ample power for heavy-duty hydraulic operations.
Three Output Ports: Equipped with three output connections, this transfer case allows for the simultaneous operation of multiple hydraulic pumps, enhancing efficiency and versatility.
Overall Casting Design: The integral casting construction provides enhanced strength and stability, reducing the risk of failure under high loads and ensuring long-lasting performance.
Durability: Built to withstand harsh working conditions, this transfer case is constructed from high-quality materials, ensuring reliable operation in demanding environments.
Versatile Applications: Suitable for a variety of industries, including construction, agriculture, and manufacturing, where effective hydraulic power distribution is crucial.
