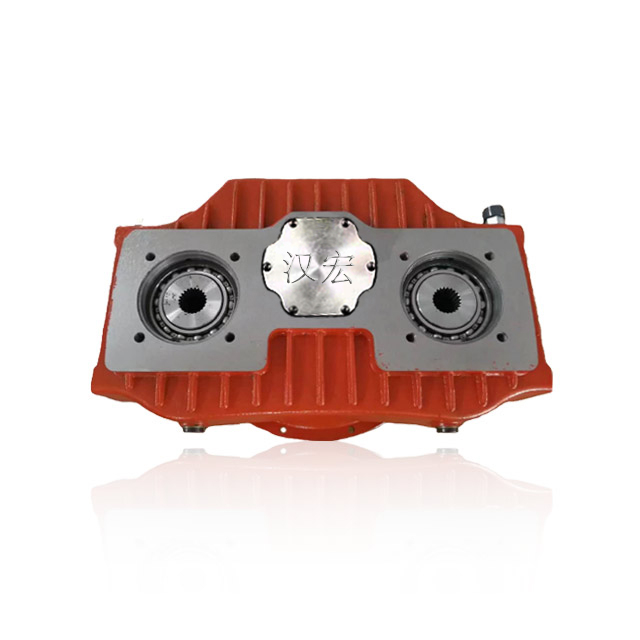

The 400 kW One Input Two Outputs Transfer Case is a powerful and efficient hydraulic solution designed for high-demand industrial applications. This transfer case enables effective power distribution to multiple hydraulic systems, optimizing performance and productivity.
| Transfer case parameter table | |
| Input power P | 400KW |
| Single pump power | 210KW |
| Single pump maximum torque T | 1000Nm |
| Maximum input speed n | 3500min |
| Speed ratio | 0.7-1.4 |
| Approximate weight | 137kg |
| Connection type | |
| Input connection optional | Diesel engine/motor/hydraulic motor, etc |
| Connection type is optional | Elastic coupling/clutch/cardan shaft/direct connection, etc |
| Output connection optional | Hydraulic pump/air compressor/generator, etc |
Input Power: Capable of handling an input power of 400 kW, making it suitable for the most demanding hydraulic tasks.
Two Output Ports: Designed with two output connections, allowing for the simultaneous operation of multiple hydraulic pumps, enhancing operational efficiency.
Robust Construction: Engineered with durable materials to withstand harsh environments, ensuring long-lasting reliability and performance.
Versatile Applications: Suitable for various industries, including agricultural machinery, construction machinery, petroleum machinery, coal mining machinery, and military equipment, where efficient hydraulic power distribution is crucial.
Enhanced Performance: This transfer case is designed to provide consistent power delivery, making it an indispensable component for hydraulic systems requiring high efficiency and reliability.
