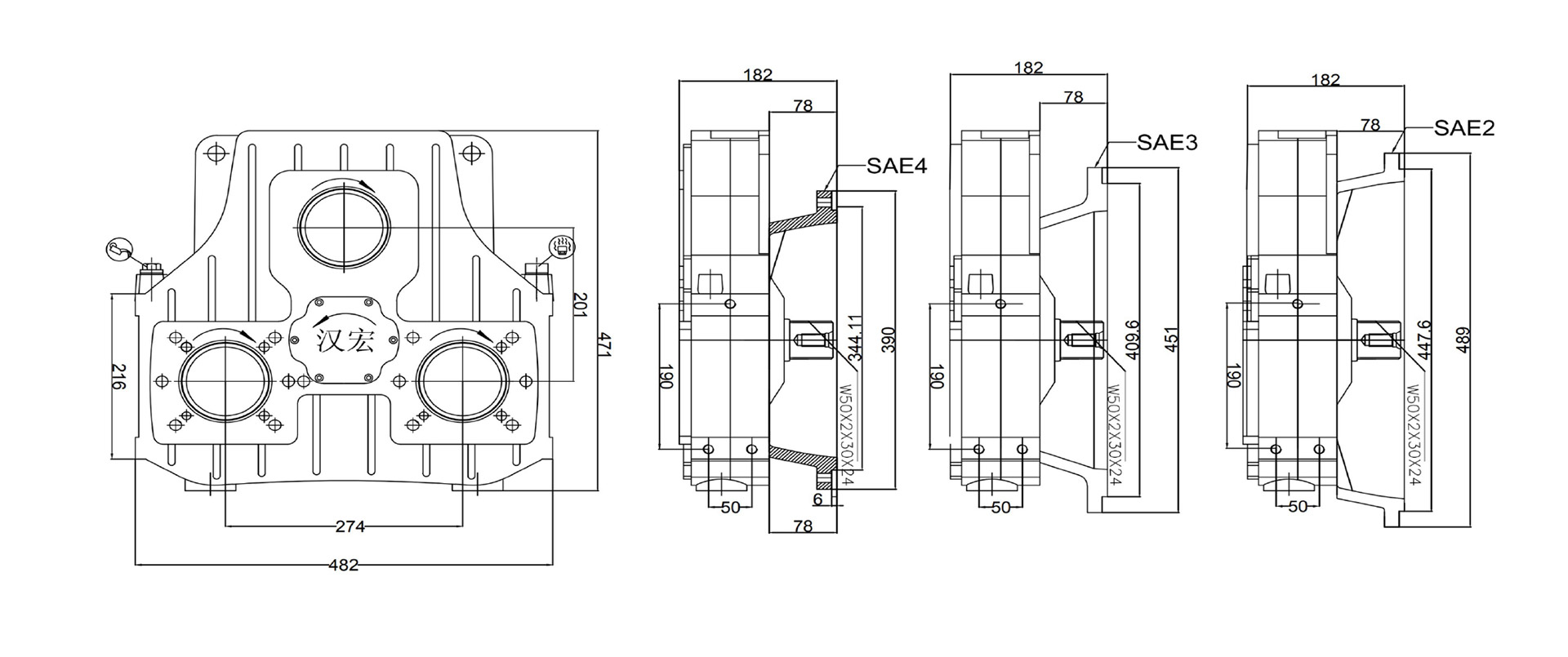

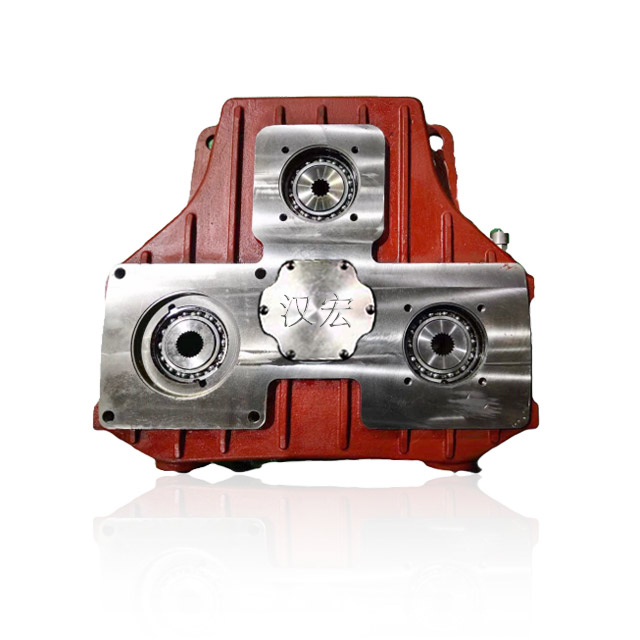

The 280 kW One Input Three Outputs Transfer Case is a powerful hydraulic system designed to maximize efficiency and performance in demanding industrial applications. This unit is engineered to distribute power effectively to multiple hydraulic pumps, enabling simultaneous operation of various hydraulic functions.
| Transfer case parameter table | |
| Input power P | 280KW |
| Single pump power | 145KW |
| Single pump maximum torque T | 500Nm |
| Maximum input speed n | 3500min |
| Speed ratio | 0.7-1.4 |
| Approximate weight | 103kg |
| Connection type | |
| Input connection optional | Diesel engine/motor/hydraulic motor, etc |
| Connection type is optional | Elastic coupling/clutch/cardan shaft/direct connection, etc |
| Output connection optional | Hydraulic pump/air compressor/generator, etc |
Input Power: Capable of handling an input power of 280 kW, providing robust performance for heavy-duty operations.
Single Pump Power: Each output can support a single pump power of up to 145 kW, allowing for effective utilization of hydraulic resources.
Three Output Ports: Designed with three output connections, this transfer case allows for the operation of multiple hydraulic systems at once, enhancing operational versatility.
Durability: Constructed from high-strength materials, ensuring reliability and longevity even under challenging working conditions.
Versatile Applications: Suitable for various industries, including agricultural machinery, construction machinery, petroleum machinery, coal mining machinery, and military equipment, where efficient hydraulic power distribution is crucial.
