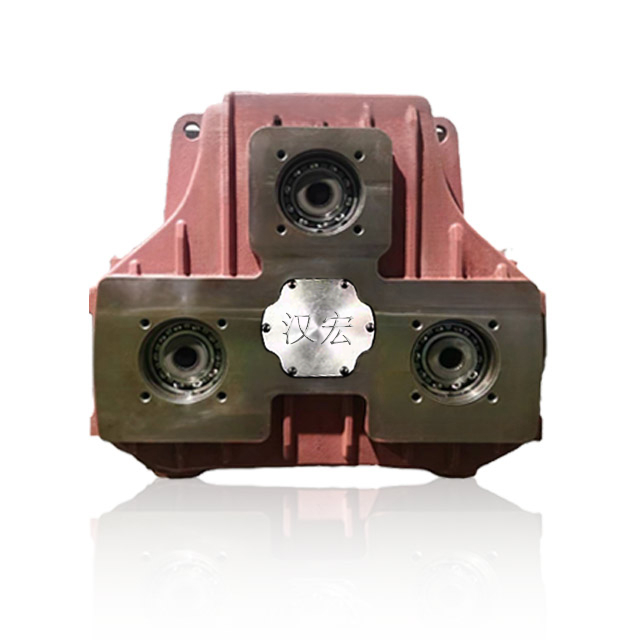

The 400 kW One Input Three Outputs Transfer Case is a robust hydraulic power solution designed to meet the demands of high-performance industrial applications. This transfer case efficiently distributes power to multiple hydraulic systems, enhancing operational versatility and productivity.
| Transfer case parameter table | |
| Input power P | 400KW |
| Single pump power | 210KW |
| Single pump maximum torque T | 1000Nm |
| Maximum input speed n | 3500min |
| Speed ratio | 0.7-1.4 |
| Approximate weight | 137kg |
| Connection type | |
| Input connection optional | Diesel engine/motor/hydraulic motor, etc |
| Connection type is optional | Elastic coupling/clutch/cardan shaft/direct connection, etc |
| Output connection optional | Hydraulic pump/air compressor/generator, etc |
Input Power: Designed to accommodate an input power of 400 kW, making it ideal for heavy-duty hydraulic operations.
Three Output Ports: Equipped with three output connections, allowing for the simultaneous operation of multiple hydraulic pumps or systems, thereby increasing efficiency.
Durable Construction: Built with high-quality materials to ensure resilience and longevity, even in challenging operational environments.
Versatile Applications: Suitable for various industries, including agricultural machinery, construction machinery, petroleum machinery, coal mining machinery, and military equipment, where efficient hydraulic power distribution is crucial.
Optimized Performance: Engineered to provide stable and consistent power delivery, making it an essential component for any hydraulic system that requires high efficiency and reliability.
